OVERVIEW
Max capacity [Max] : 2,1g
Readability [d]: 0,1µg

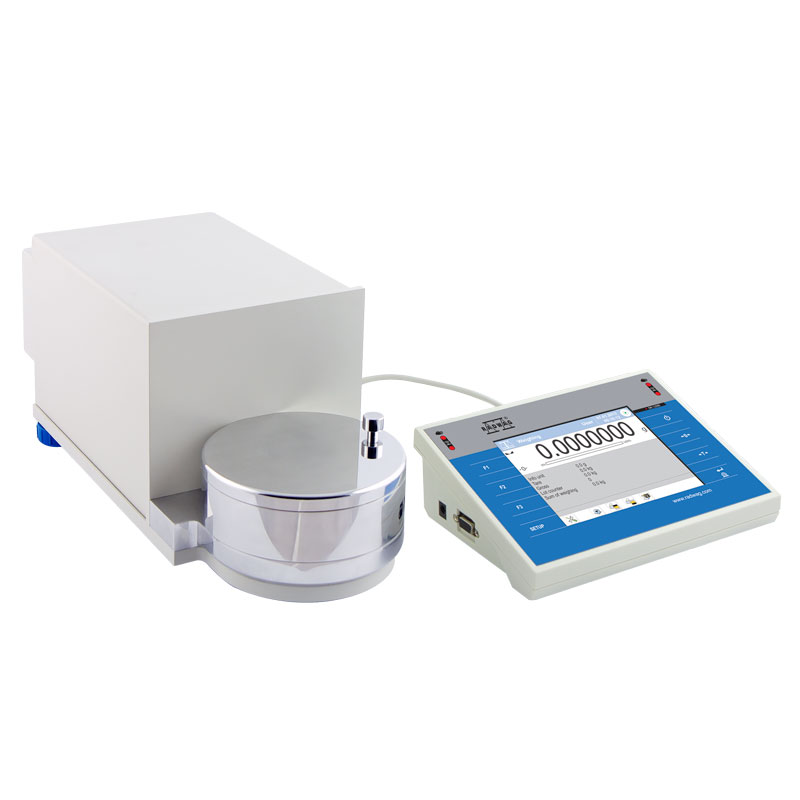

New generation of ultra-microbalances UYA 4Y is designed to meet the highest requirements for determination of mass. Its built-in system of automatic internal adjustment/calibration maintains excellent measurement reliability and accuracy. The device comprises two major components (an indicator and a precise mechanical measuring system which are enclosed separately). Such design eliminates an influence of heat sourcing from instrument's electronics on its mechanical components and additionally protects it from shocks and vibrations caused by users operating the instrument. All the elements of a microbalance are made of glass and steel which eliminates an impact of electrostatics on weighing process.
DATASHEET
| Max capacity [Max] | 2,1 g |
| Readability [d] | 0,1 µg |
| Tare range | -2,1 g |
| Repeatability | 0,3 µg |
| Linearity | ±1,5 µg |
| Eccentric load deviation | 1,5 µg |
| Sensitivity stability | 1×10⁻⁶/Year×Rt |
| Sensitivity offset | 1,5×10⁻⁶×Rt |
| Sensitivity temperature drift | 1×10⁻⁶/°C×Rt |
| Minimum weight (USP) | 0,6 mg |
| Minimum weight (U=1%,k=2) | 0,06 mg |
| Stabilization time | 10-20 s |
| Adjustment | internal |
| Display | 5,7'' (touch screen) |
| Power supply | 13,5 ÷ 16 V DC |
| Power consumption | 700mA (wireless terminal - 1A) |
| Working temperature | +10 ÷ +30 °C |
| Atmospheric humidity | 40% ÷ 80% |
| Pan Size | ø 50 mm |
| Weighing chamber dimensions | ø 118×35 mm |
| Packaging size | 565×565×355 mm |
