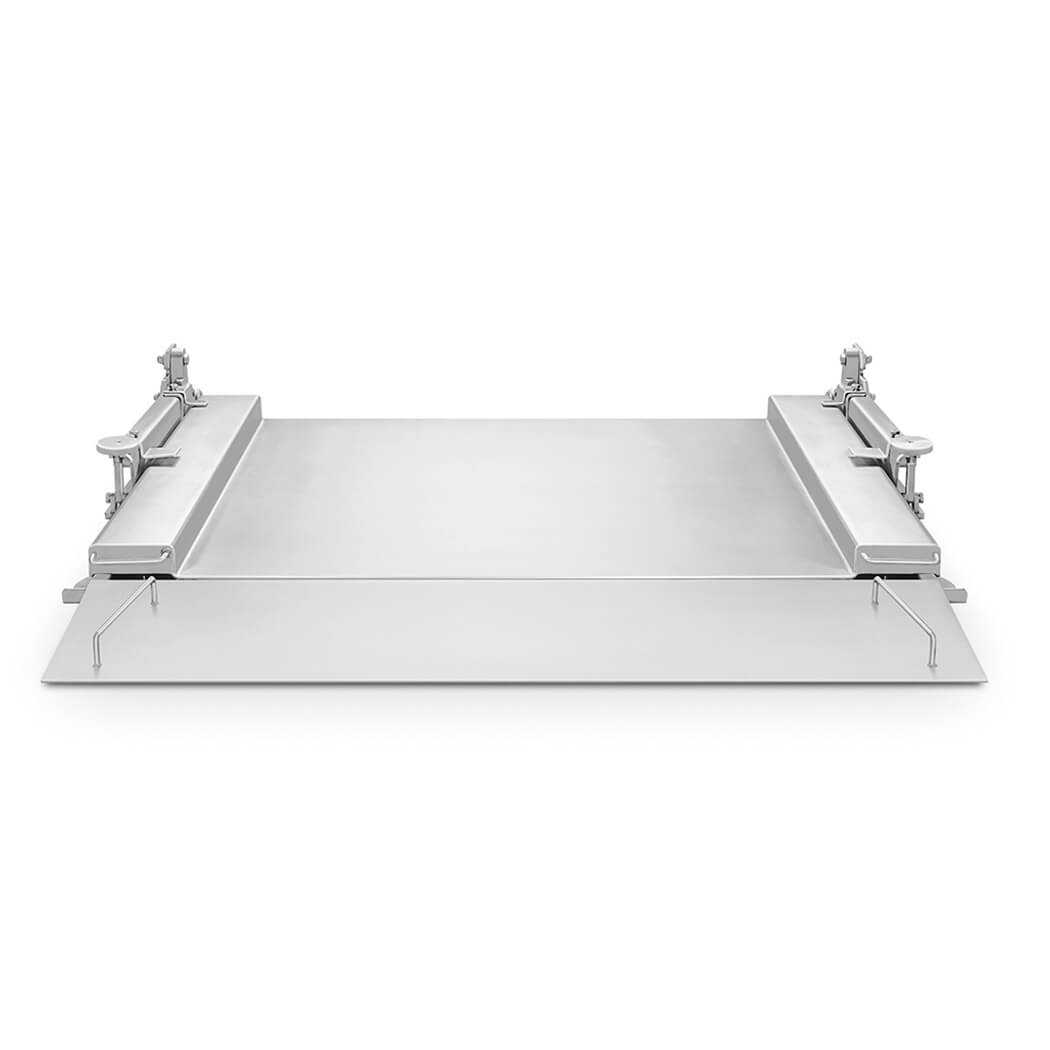

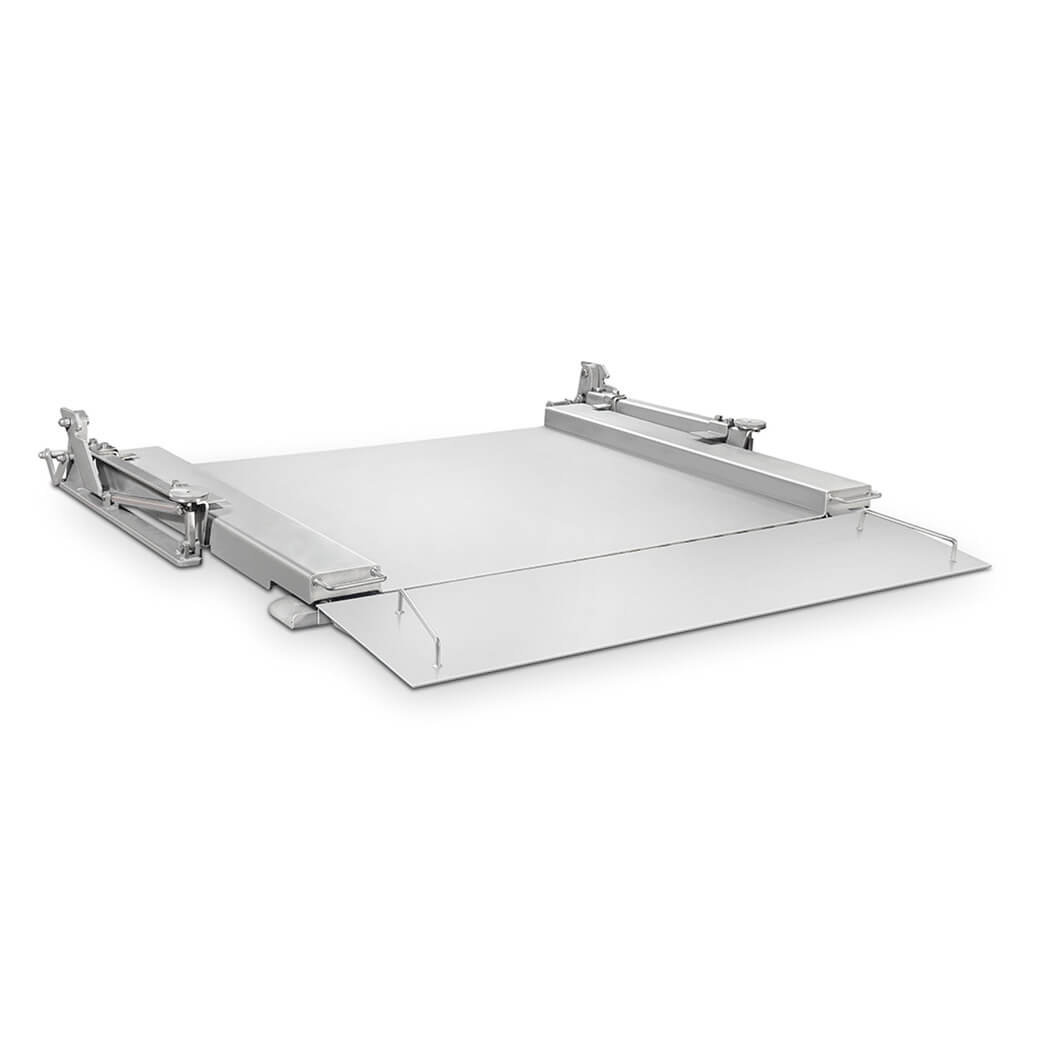

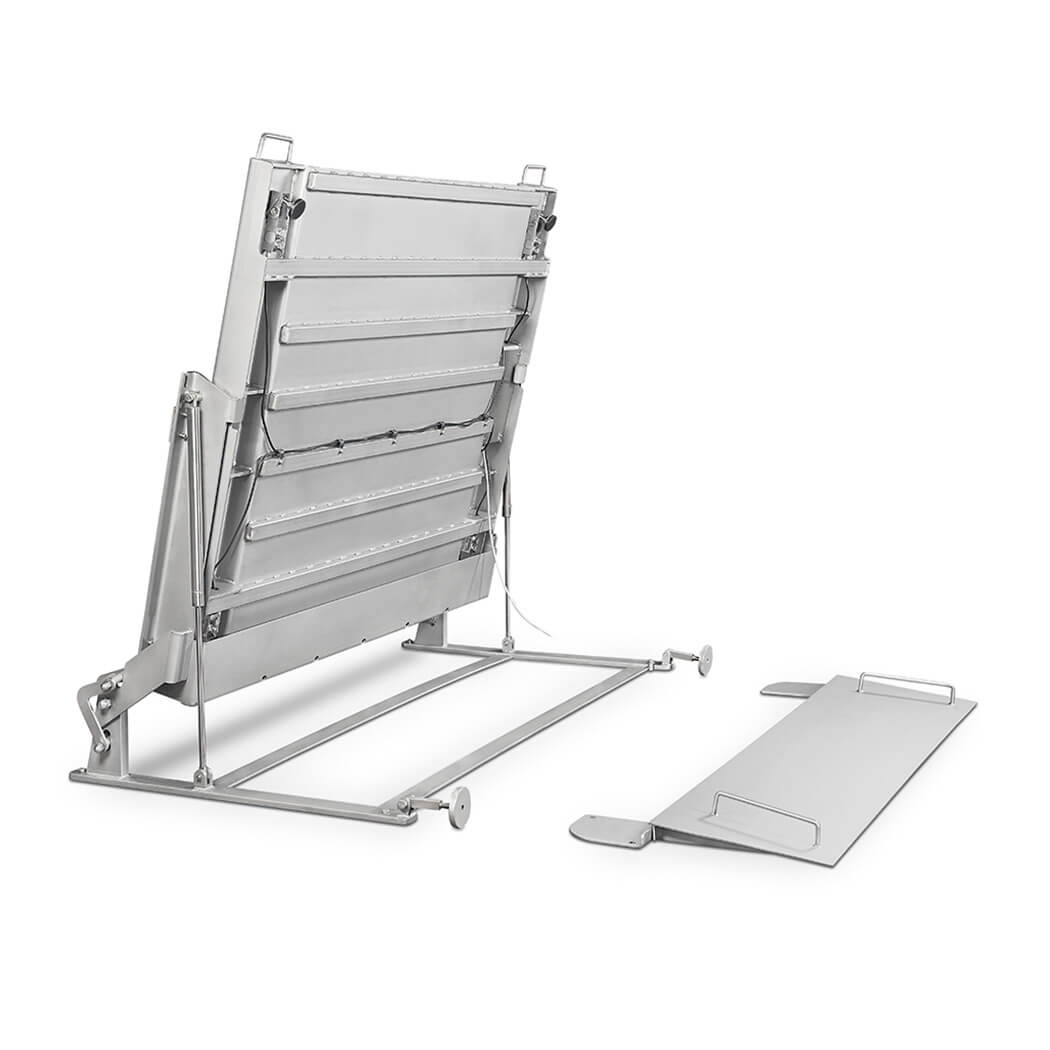

Defender 5000 Series Stainless Steel Lift Platform combines durable construction and an ultra-low height. Featuring a stainless steel platform, built-in ramp, four IP68 stainless steel load cells (with adjustable feet), the ultra-low design simplifies the job of moving goods on and off the platform.
Applications
N/A
Display
N/A
Operation
N/A
Communication
N/A
Construction

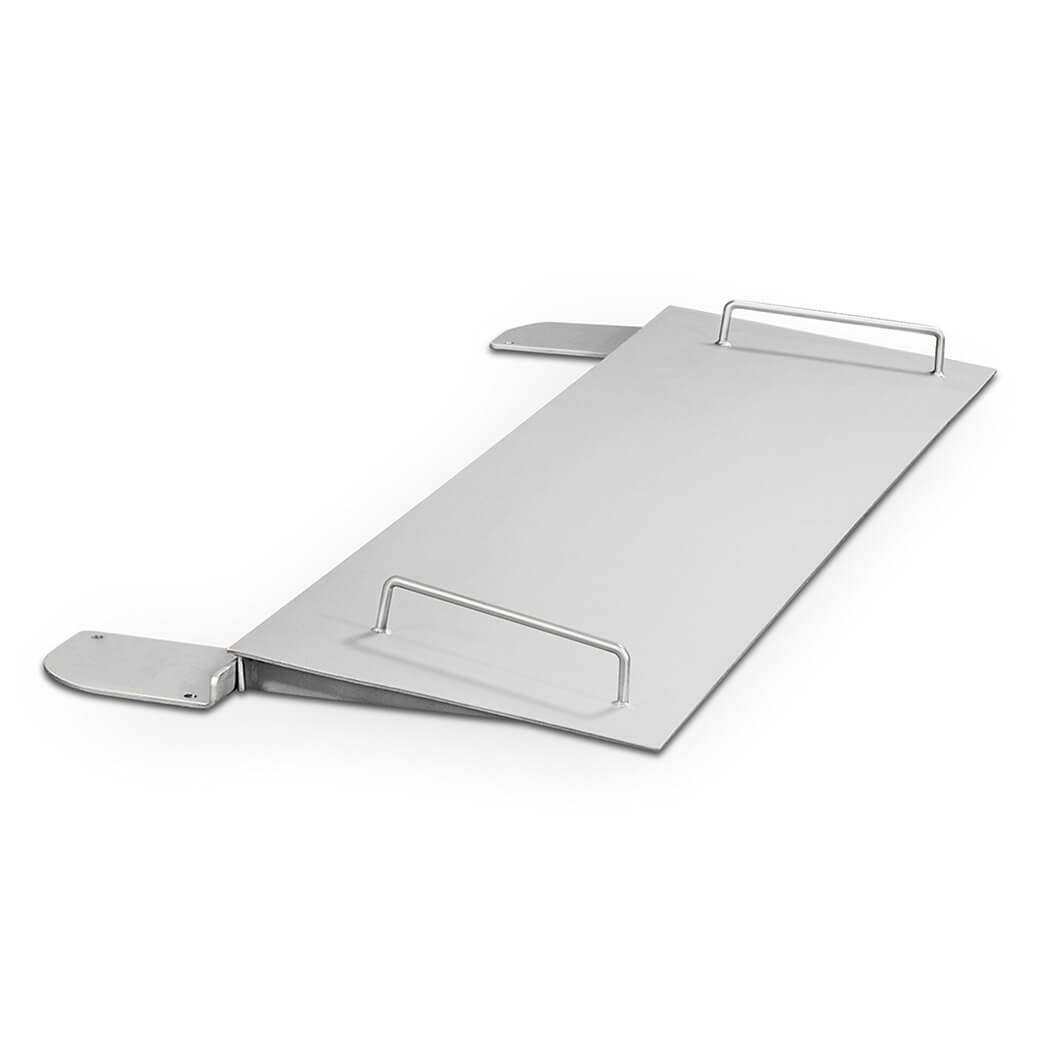

Stainless steel platform, IP67 stainless steel junction box, (4) OIML R60 IP68 stainless steel load cell and a front access stainless steel ramp
Design Features
150% capacity overload protection, stainless steel floor stand (available as accessory)
DEFENDER™ 5000 WASHDOWN LIFT FLOOR PLATFORMS MODELS
| MODELS | DFL600WR | DFL1500WL |
| Maximum Capacity | 600 kg | 1,500 kg |
| Readability | 0.2 kg | 0.5 kg |
| Readability (Certified) | 0.2 kg | 0.5 kg |
| Platform Size | 1,000 mm x 1,000 mm | 1,250 mm x 1,250 mm |
| Protection Rating | IP67 | IP67 |
| Legal for Trade | EC Type Approvable | EC Type Approvable |
| Dimensions | 1,624 mm x 280 mm x 1,488 mm (LxHxW) | 1,874 mm x 280 mm x 1,738 mm (LxHxW) |
| Net Weight | 223 kg | 313 kg |
| Platform Construction | Stainless Steel | Stainless Steel |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing | -10°C – 40°C, 85%RH, non-condensing |
