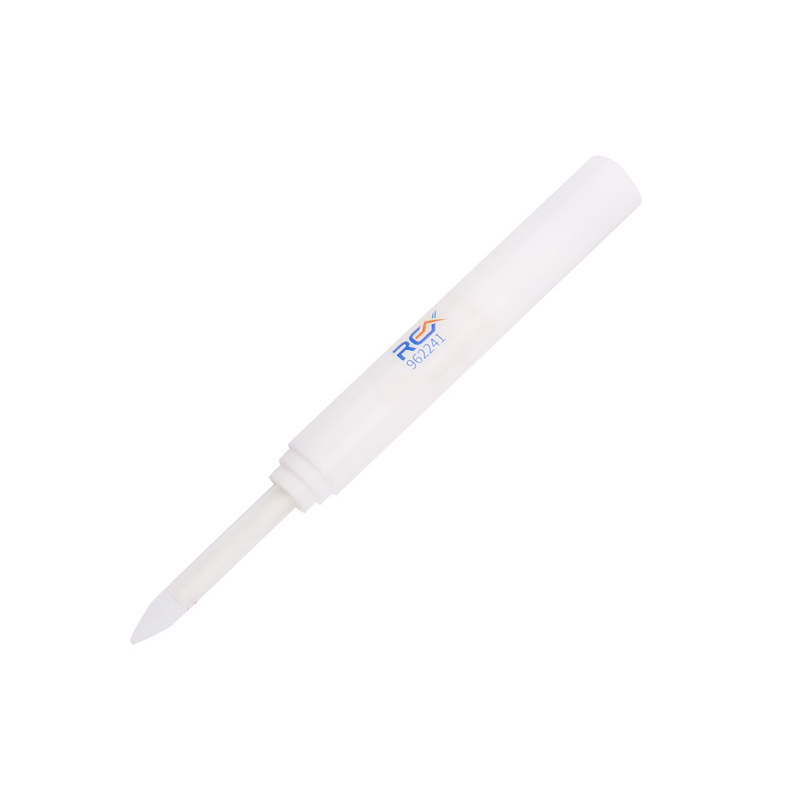

REX 962241 pH Composite Electrode (Blade spear)

Product Name：REX 962241 pH Composite Electrode (Blade spear)

Category：Water Analysis Meters & Electrodes
Brand： REX
Model：
Introduction：
pH electrodes has the pH indicator electrode, composite electrode, and 3 in1 pH composite electrode. pH indicator electrode needs to cooperate with reference electrode. Composite electrode combines the pH indicator electrode, reference electrode. 3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe. Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature. The connector must be compatible with the meter you are using.

Prev：REX 962242 pH Composite Electrode (Flat)

Next：REX 962121 pH Composite Electrode (Low conductivity)

GENERAL FEATURES

pH electrodes has the pH indicator electrode, composite electrode, and 3 in1 pH composite electrode.

pH indicator electrode needs to cooperate with reference electrode.

Composite electrode combines the pH indicator electrode, reference electrode.

3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe.

Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.

The connector must be compatible with the meter you are using.

S7 【S7-BNC(Q9) cable】

BNC(Q9)

Model	962241
Name	pH composite electrode (Blade spear)
pH Range	0～14
Fill Solution	3 M KCl
Sensor material	POM&316 stainless steel
Working Temp.	0~60 ℃
Junction material	Ceramic
Reference Type	Longlife Ref.
Dimension	Φ11×80 mm (Measuring tip)
Connector Type	BNC(Q9)
